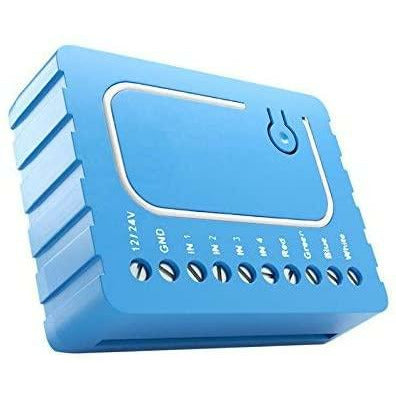

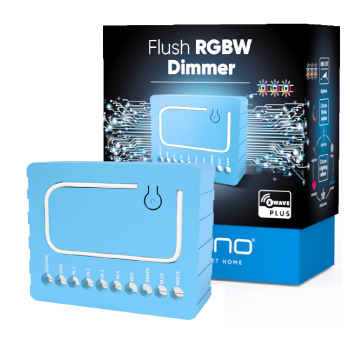

Qubino Z-Wave Plus RGBW Controller ZMNHWD3 for 12-24V LED Strips and Light Bulbs

$ 64.95 $ 51.95
Availability: Out Of Stock

Add to wishlist
Add to compare
SKU: ZMNHWD3
Smart Home Automation
Qubino
 Lighting,Qubino,Smart Home
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

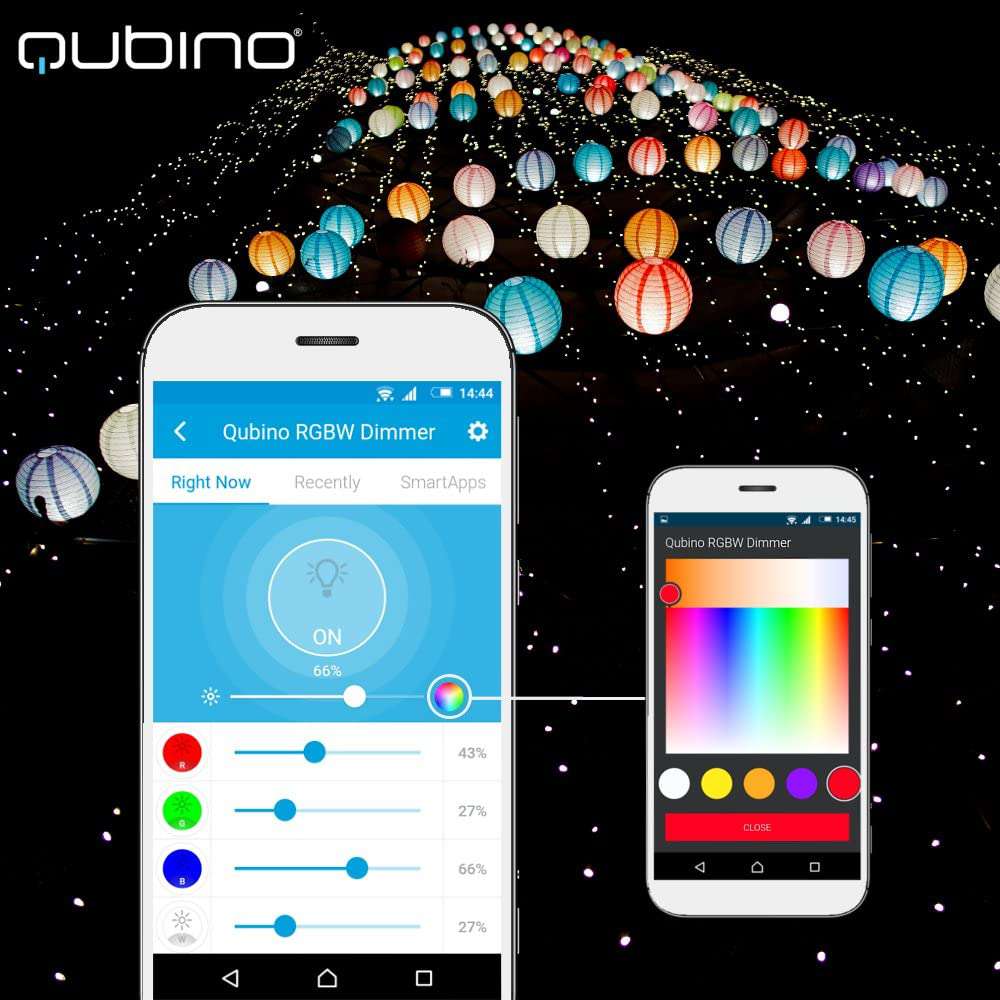

Preparing a house party? Or a romantic dinner? Do you want to color your home in shades appropriate for the occasion? With the Qubino RGBW Dimmer, you can choose between 16 million lighting shades or use lighting effects for different purposes. Using your smartphone, set your RGB/RGBW lights the color you want.

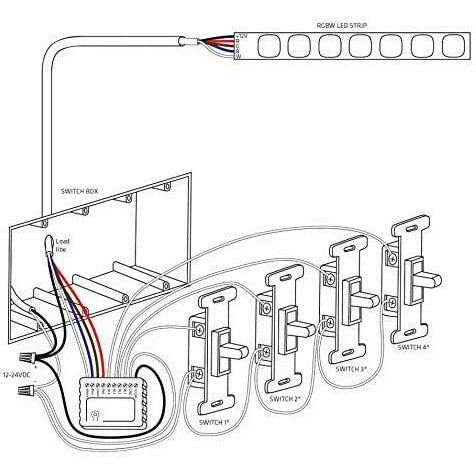

  • WHAT DOES IT DO? Connect it to your 12-24VDC RGBW LED strip for Z-Wave wireless control. Dim and control 16 million shades.
  • WHAT ELSE DO I NEED? A matching power supply for the Qubino, so if your strip runs on 12VDC, get a 12 VDC power supply, if it needs 24 VDC, power the Qubino with 24 VDC (VERY IMPORTANT). You'll need a compatible Z-Wave hub for wireless control (scroll down for details). Alexa is NOT a Z-Wave hub.
  • WHY NOT GET A Z-WAVE RGBW STRIP? So you can choose the length and style of your lights AND save a few bucks!
  • HOW IS IT BETTER? If your Z-Wave hub supports advanced parameter input (you’ll need a custom handler for SmartThings), you'll be able to set minimum and maximum dimming levels, schedule built-in timers, or choose just the right ramp rate. It will also remember and restore the on/off status after power failure.



SPECIFICATIONS:
      • Model Number: ZMNHWD3
      • Z-Wave Signal Frequency: 908.42 MHz
      • Power: 12-24 VDC
      • Maximum Load: 8 A for single-channel, 13 A total output (max 3.25 A per each RGBW channel recommended)
      • Power Consumption: 0.5 W at 12V / 0.72 W at 24V
      • Z-Wave Range: Up to 130 feet line of sight
      • Operating Temperature: 32-104° F
      • Installation and Use: Indoor only
      • Dimensions: 1.77" x 1.25" x 0.57"
      • Weight: 1 oz


COMPATIBLE HUBS:

Do NOT buy if your controller is not listed below. Contact Seller first.

    • Domoticz
    • Fibaro Home Center Lite
    • Home Assistant
    • HomeSeer
    • Samsung SmartThings Hub with custom device handler - Contact Seller for Instructions
    • VeraEdge
    • VeraPlus
    • VeraSecure
    • Z-Wave Me



Technical specifications

Power supply 12 / 24V DC
PWM output frequency 488Hz
Rated output power 8A for single output channel,13A at max.(3,25A for R.G.B.W. single output channel is suggested)
Max load (e.g. halogen bulbs)

At 12V- 156W combined

At 24V- 312W combined
LED Indicator Red/Green *1
Operation temperature 0℃~40℃ (32 ~ 104°F)
Distance up to 30 m indoors (98 ft)
Dimensions (WxHxD) 40.5 x 32 x 14.5 mm / 1,60x1,26x0,57 in
Package dimensions (W x H x D) 74 x 43 x 86 mm / 2,91x1,69x3,39 in
Weight 17 g / 0.60oz
Gross weight (packaging included) 43 g / 1.52oz
Electricity consumption 12V: 0.48W; 24V: 0.72W
For installation in boxes Ø ≥ 60 mm (2,36 in) or 2M (78,74 in),



depth≥ 60 mm (2,36 in)
Z-Wave Repeater Yes
*Warning: the Qubino RGBW dimmer operates at a low voltage (12VDC/24VDC). See the instructions in the manual.

Supported Z-Wave Frequencies

ORDERING CODE (MODEL NUMBER) Z-WAVE FREQUENCY
ZMNHWD1 868.4 MHz
ZMNHWD2 921.4 MHz
ZMNHWD3 908.4 MHz
ZMNHWD4 869,0 MHz
ZMNHWD5 916,0 MHz
ZMNHWD6 868,4 MHz
ZMNHWD7 919,8 MHz
ZMNHWD8 865,2 MHz
ZMNHWD9 922,5 MHz
ZMNHWDA 919,7 – 921,7 – 923,7 MHz
ZMNHWDB 868,1 MHz
ZMNHWDC 868,1 MHz
ZMNHWDD 919,8 MHz
ZMNHWDE 920,9 MHz
